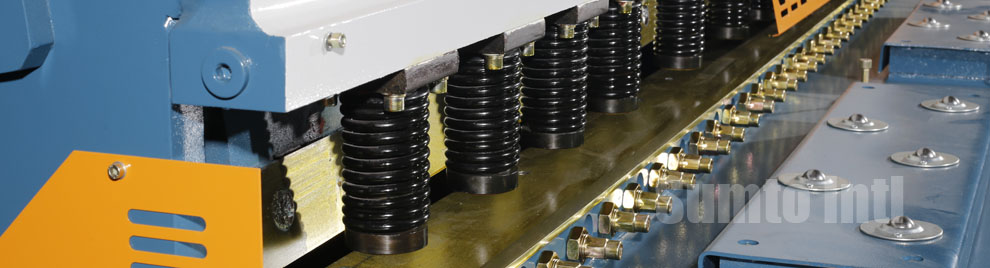

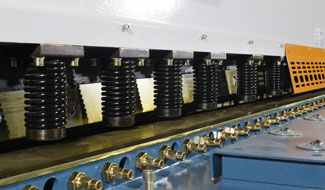

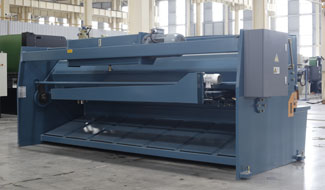

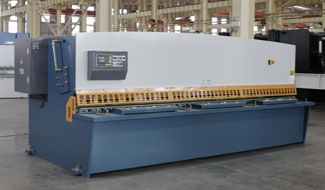

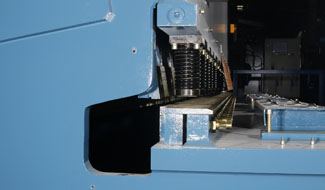

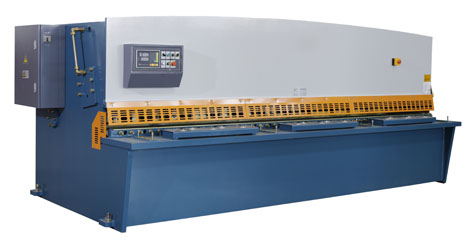

QC12K Series Hydraulic Swing Beam Shear
General Features
Steel plate welded structure, hydraulic transmission, nitrogen cylinder return
Easy operation, reliable performance, beautiful appearance
The blade gap adjustment has a sign indication, the stepless adjustment is light and rapid
It has a light alignment device and can adjust the stroke of the top blade holder steplessly.
With hydraulic and electrical overload protection
Rolling material support ball will reduce the scratch and frictions as well
Adopt safety protection fence for the safety of workers
Straightness: ±0.10mm for 3m plate cutting
50% faster than others (30 times/min for our 4x2500 shear while others is only 12 times/min)
Blade material:6CrW2Si
Heat treatment: 55°-60°HB
Low noise (70bd), gear pump drive by hydraulic
E21s, E200PS, DAC310S CNC system can be selected



    STANDARD COMPONENTS       OPTIONAL
Estun E21S NC controller
Germany BOSCH-REXROTH hydraulic system
Germany SIEMENS motor
SAEMP/Sunny oil pump
Taiwan PMI/PYM ball screw
Germany cutting sleeves and joint
France Schneider electrics
Manual blade gap adjustment
Light alignment device
Blade material 6CrW2Si/H13

Estun E200PS servo motor & drive + Taiwan PMI ball screw.
DAC 310 servo motor & drive + Taiwan PMI ball screw & linear guide
Cooling system
Rear pneumatic support
